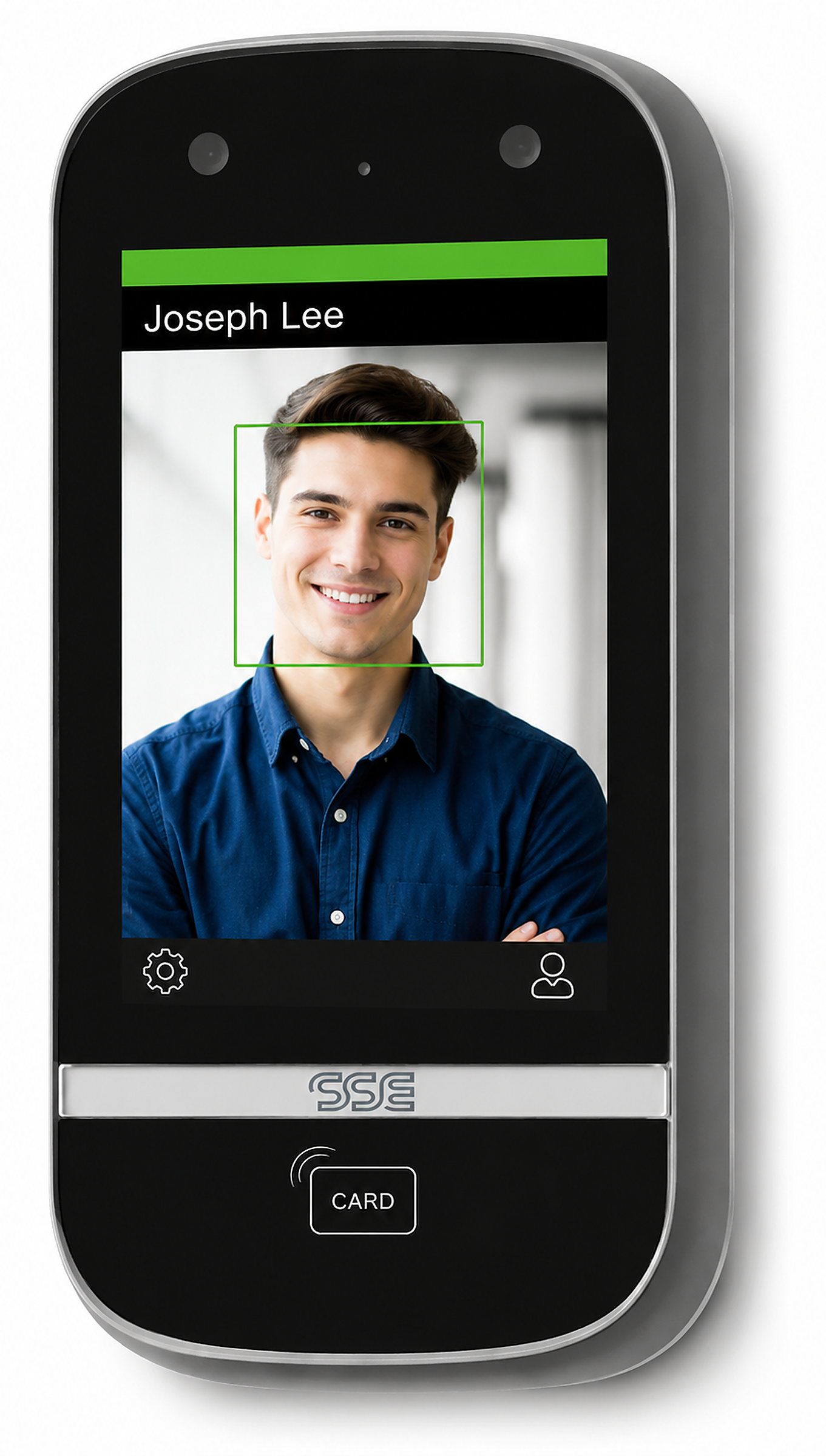

The AFCM-2503 is a high-performance face recognition terminal with visible light and NIR cameras for fast, accurate authentication in all lighting conditions. 50,000-face database, 5-inch touch display, PoE support, IP65 rated.
Visible light + NIR camera for all conditions
Face recognition from 0.4m to 2.0m
Up to 50,000 face templates in 1:N mode
Automatic face tracking on-screen
Authentication under 1.0 second
Power over Ethernet for simplified installation
Connects to third party ticketing and membership systems
ISO 9001, CE, FCC, KC, UKCA
| Product Model | AFCM-2503 |
| Processor | Quad Core ARM Cortex-A7 with NPU |
| Memory | 2GB RAM, 8GB Flash |
| Display | 5.0-inch touch screen |
| Recognition Speed | < 1.0 sec |
| Recognition Distance | 40cm to 200cm |
| Face Capacity | 50,000 (1:N) |
| RFID Standard | ISO/IEC 14443 A/B, MiFare, DesFire, FeliCa |
| Power | 15 to 24V DC; PoE optional |
| Dimensions | 200mm × 100mm × 36mm |
| Protection | IP65 |
| Operating Temp | -20°C to +50°C |
