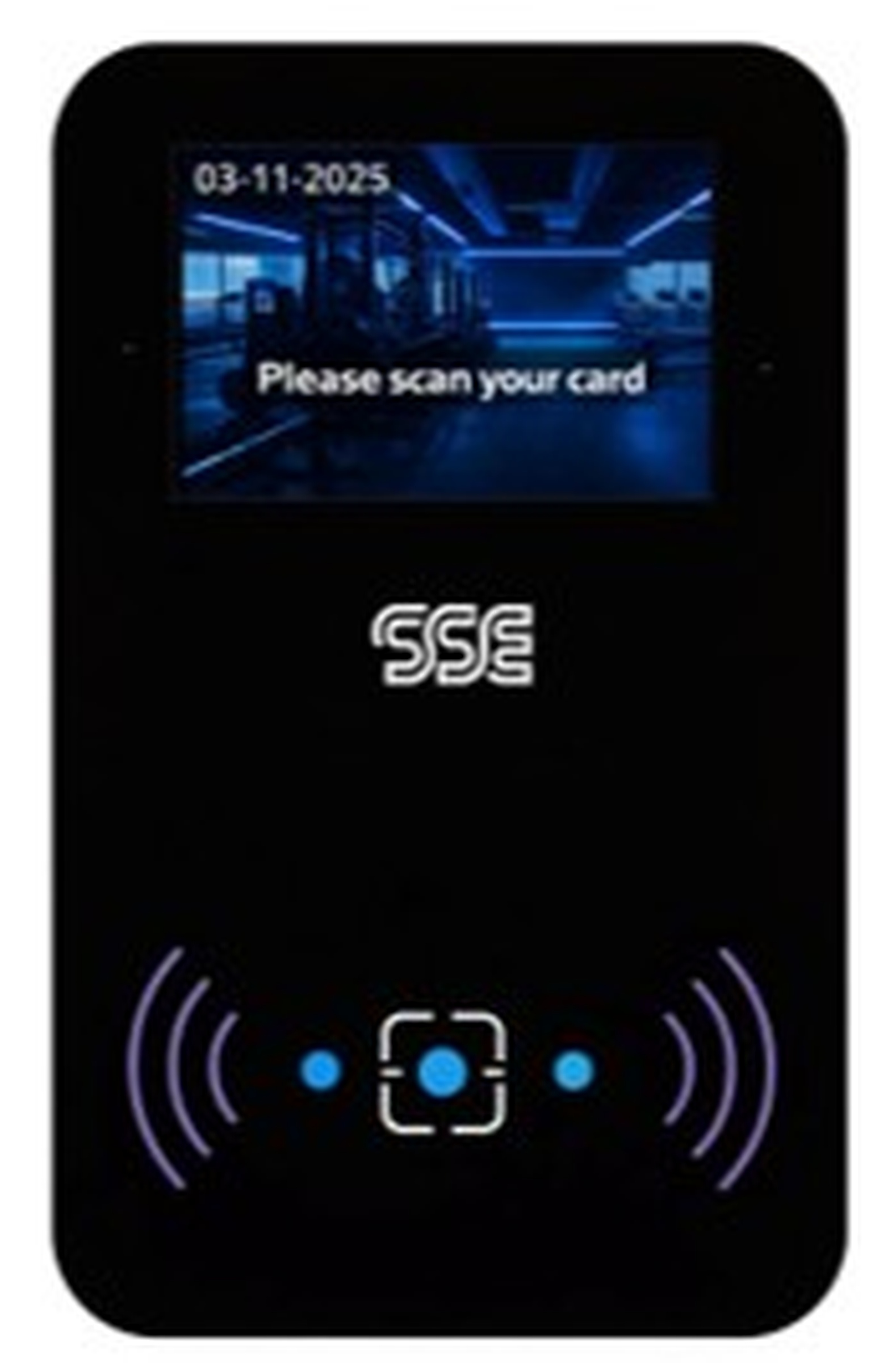

The AQRC-2602 is a professional QR code and RFID access control reader with a 2-inch HD display and local storage for up to 100,000 users. Supports HTTP, HTTPS, and MQTT protocols with Wiegand or RS485 output.
QR recognition speed under 200ms
2.0-inch IPS screen with customisable UI
100,000 users and 100,000 records locally
HTTP, HTTPS, MQTT with Wiegand or RS485
QR code, RFID, and optional Bluetooth
ISO1443A/B, CPU card, EM card (125K optional)
ABS + Tempered Glass, IPX7-rated
Connects to third party access control systems
| Product Model | AQRC-2602 |
| Material | ABS + Tempered Glass |
| Networking | Ethernet / Wi-Fi (2.4GHz) |
| Identification | QR Code, IC/EM Card, Bluetooth (Optional) |
| Display | 2.0-inch IPS, 320×240 |
| User Storage | 100,000 QR / 100,000 IC cards |
| QR Speed | < 200ms |
| QR Distance | 5cm to 20cm |
| Waterproof | IPX7 |
| Voltage | DC 6V to 25V |
| Dimensions | 115mm × 75mm × 15mm |
| Operating Temp | -20°C to +60°C |
Get in touch with our team for pricing, availability, or technical questions.
