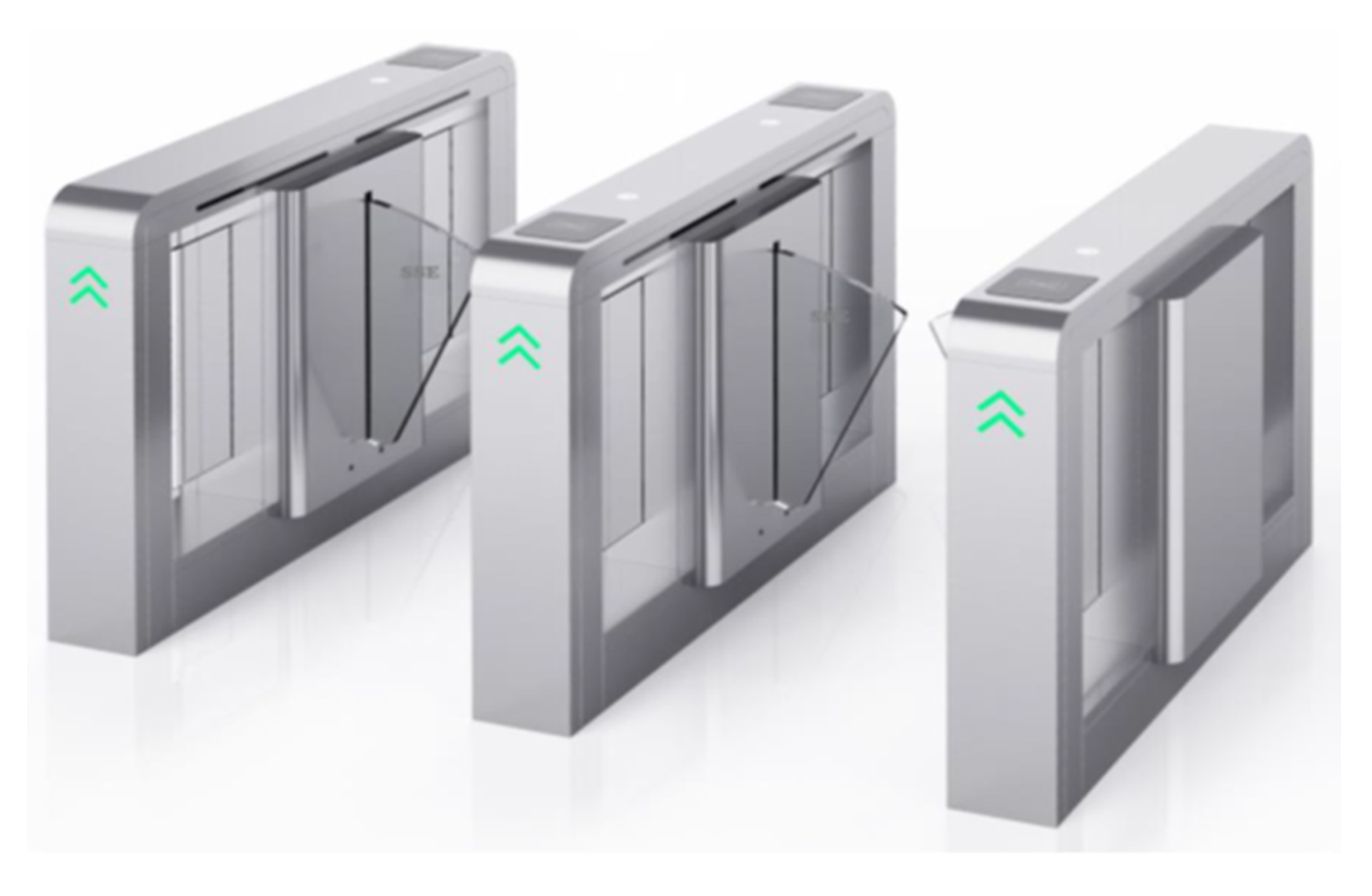

The SFLF-2503 is a high-performance flap barrier turnstile with 304 stainless steel frame and acrylic wings. Powered by a 100W DC brushless motor, 0.5 to 1s switching speed, noise ≤65dB, and ≥15 million cycle durability.
Strong torque, 0.5 to 1s switching, noise ≤65dB
MCBF ≥ 15 million cycles
Face recognition, IC/ID cards, and QR codes
304 stainless steel with fine brushed texture
Suitable for both environments
Compatible with standard access control systems
Centralized access control and monitoring
6 pairs for precise detection
| Product Model | SFLF-2503 |
| Material | 304 Stainless Steel + Acrylic |
| Dimensions | 1,400mm × 280mm × 980mm |
| Lane Width | 500 to 550mm |
| Motor | DC Brushless |
| Passing Speed | 30/min (closed) / 40/min (open) |
| Open-Close Speed | 0.5s to 1s adjustable |
| Communication | RS485 and TCP/IP |
| Power Supply | AC 220V/110V±10% |
| Device Power | 100W / Motor 40W |
| Electric Eyes | 6 pairs |
| MCBF | ≥ 15 million times |
| Noise | ≤ 65dB |
| Operating Temp | -25°C to +70°C |
