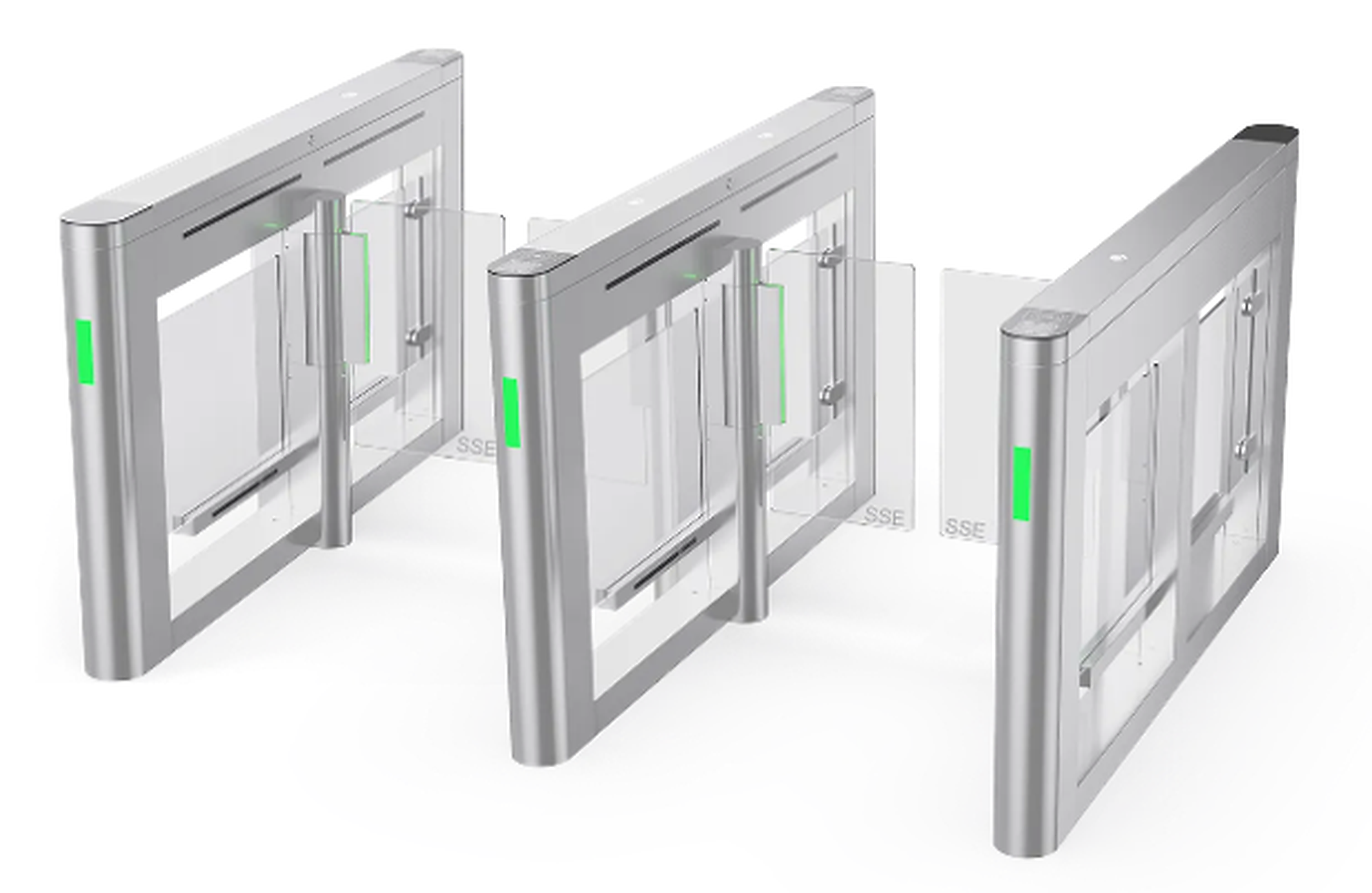

The SSWF-2502 is a high-end swing barrier built with stainless steel and tempered glass, brushless DC servo motor, triple anti pinch protection, 10 infrared sensors, and flexible lane width from 600mm to 1,150mm.
Brushless DC servo for fast, precise movement
Infrared, mechanical, and current detection
Configurable 600mm to 1,150mm
Accurate pedestrian and object detection
Self-check, auto reset, zero-point correction
Power-off unlocking for emergencies
Protected against dust and water splashing
Multiple gate opening modes supported
| Product Model | SSWF-2502 |
| Material | 304 Stainless Steel + Tempered Glass |
| Dimensions | 1,600mm × 116mm × 950mm |
| Lane Width | 600 to 1,150mm |
| Motor | DC Brushless Servo |
| Passing Speed | 20/min (closed) / 40/min (open) |
| Open-Close Speed | 0.5s to 1.5s adjustable |
| Electric Eyes | 10 pairs |
| Communication | RS485 and TCP/IP |
| Power | AC 220V/110V±10%, 100W |
| Protection | IP54 |
| Noise | ≤ 65dB |
| Operating Temp | -25°C to +70°C |
Get in touch with our team for pricing, availability, or technical questions.
