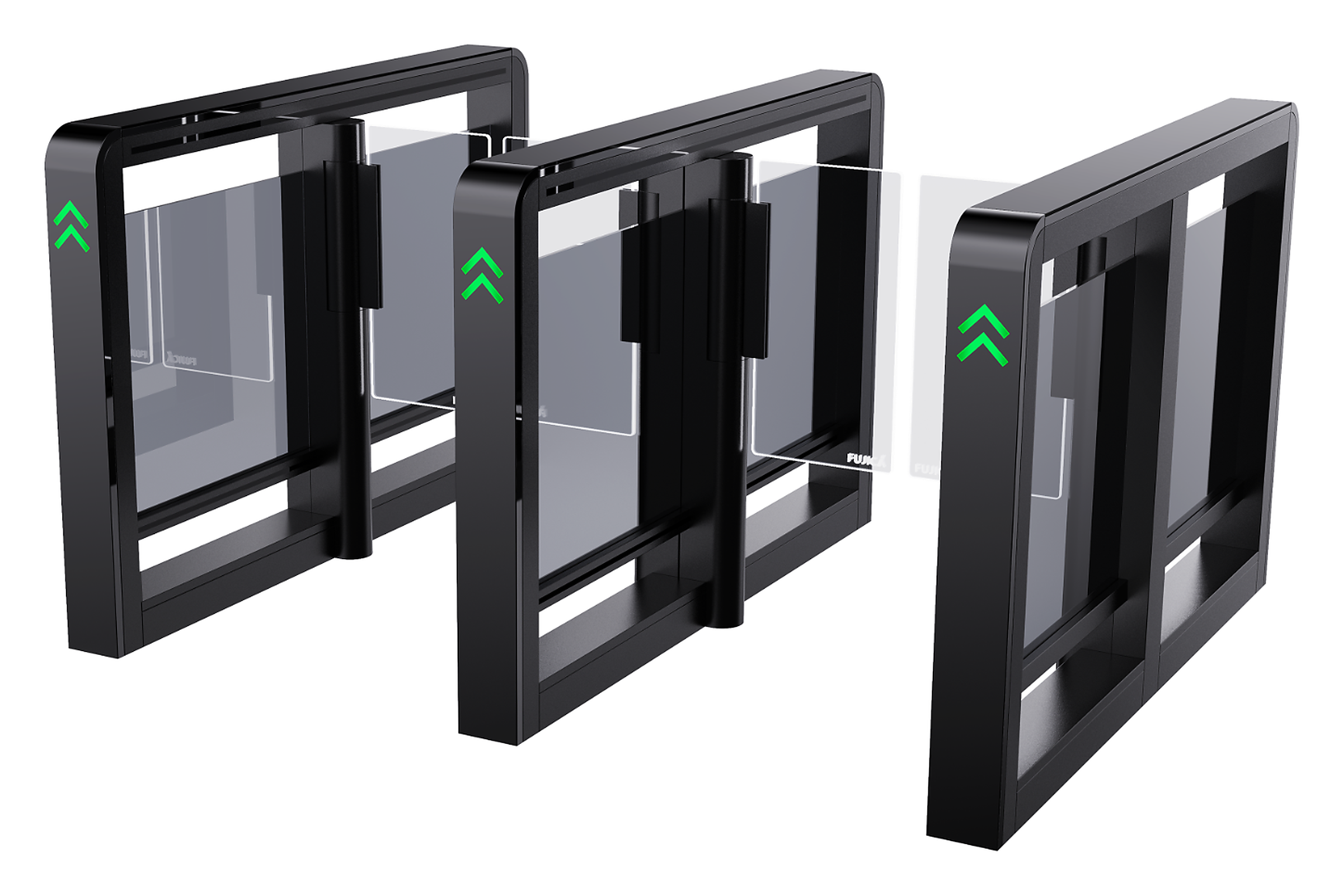

The SSWF-2503 is a premium speed gate with 64 infrared sensor pairs, servo/brushless motor rated at 20 million cycles, intelligent voice alerts, and customizable glass or acrylic panels.
Anti pinch, anti-tailgating, anti-intrusion protection
Servo/brushless motor for long-term reliability
Slim 304 stainless steel and tempered glass
Voice alerts, sound/light alarms
Auto-unlock during power-off or emergencies
Standard, half, full-height; glass or acrylic
Protected against solid objects
Customizable finishes and branding options
| Product Model | SSWF-2503 |
| Material | Cold-rolled + 304 Stainless Steel + Tempered Glass |
| Dimensions | 1,500mm × 118mm × 980mm |
| Lane Width | 600 to 1,150mm |
| Motor | DC Brushless Servo |
| Passing Speed | 20/min (closed) / 40/min (open) |
| Open-Close Speed | 0.5s to 1.5s adjustable |
| Electric Eyes | 64 pairs |
| MCBF | 20 million times |
| Communication | RS485 and TCP/IP |
| Power | AC 220V/110V±10%, 100W |
| Noise | ≤ 65dB |
| Protection | IP4X |
| Working Environment | Indoor only |
| Operating Temp | -20°C to +70°C |
