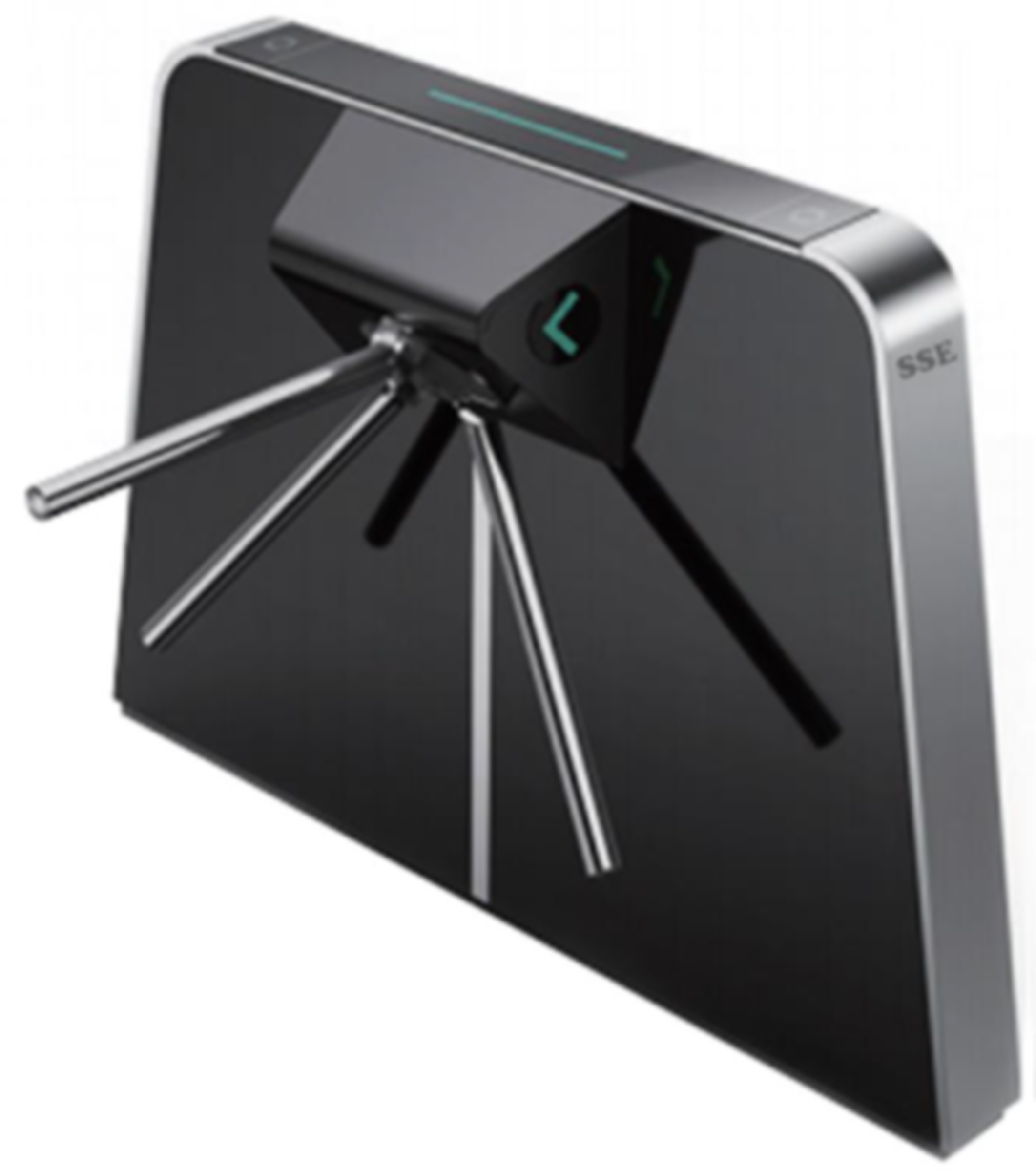

The THHF-2503 is a stylish and durable tripod turnstile for offices, transport hubs, campuses, and fitness centres. Features a brushless DC motor with self-centering, 32-bit ARM processor, and fire alarm integration.
Self-centering for smooth, stable arm rotation
High-speed processor for fast response
Configurable with built-in traffic counting
Connects to fire alarm systems
Auto reset and automatic locking lever
Multi-language support
Quick replacement of core components
Face, IC/ID cards, QR codes, ticketing, elevator
| Product Model | THHF-2503 |
| Frame Material | Galvanized Plate + 304 Stainless Steel |
| Dimensions | 1,433mm × 136mm × 980mm |
| Lane Width | 500 to 550mm |
| Passing Speed | 30/min (closed) / 60/min (open) |
| Communication | RS485 or TCP/IP |
| Working Voltage | AC 220V/110V±10% |
| Total Power | 50W |
| MCBF | ≥ 5 million times |
| Operating Temp | -15°C to +70°C |
| Working Environment | Indoor and Outdoor |
Get in touch with our team for pricing, availability, or technical questions.
